Mini Split Installation in Plano, TX

Plano’s ductless jobs are specific

Plano is not Fort Worth. The housing stock is largely 1980s onward, it was built with proper ductwork, and most of it works reasonably well. Homeowners here are rarely adding air conditioning to a house that never had it.

What they are doing is fixing three recurring problems.

The game room over the garage. This is the single most common ductless job in Plano and the surrounding Collin County suburbs. Builder floor plans from the 1990s and 2000s put a large bonus room above the garage at the end of the longest duct run in the house. It is chronically 8 to 10 degrees off the thermostat — hot in summer, cold in winter — and no amount of damper adjustment fixes it.

The west-facing office or bedroom. Plano’s newer subdivisions were platted on a grid with many homes taking hard western exposure. A room with significant west glass takes punishing afternoon sun from April through October, and a central system balanced for the whole house cannot hold it.

The garage. Plano garages hit 120°F, and the demand for usable workshop, gym, and car space is as strong here as anywhere in DFW.

Why the bonus room fails

It is worth understanding, because the fix follows from the cause.

The room sits at the end of the longest duct run, so conditioned air arrives with reduced volume and elevated temperature after traveling through a 140°F attic. It has attic on both sides behind the knee walls, attic above the sloped ceiling, and an unconditioned garage below — five of six surfaces facing unconditioned space. The garage below runs 115°F and re-radiates heat into the floor well past sunset.

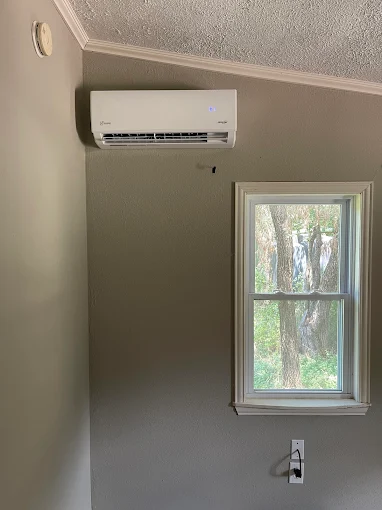

A ductless zone puts the equipment in the room. There is no distribution loss because there is no distribution path. The room gets its own thermostat, so it can hold 72°F while the rest of the house sits at 76°F.

An 18,000 BTU unit covers most Plano bonus rooms. If the garage ceiling is uninsulated, insulate it first — homeowners who do routinely drop to a 12,000 BTU unit and see the room hold temperature at part load. See attic and bonus room systems for full sizing guidance.

HOAs are the local wrinkle

Plano has an unusually high concentration of homeowners associations, particularly in West Plano, Willow Bend, and the master-planned communities along the Legacy corridor.

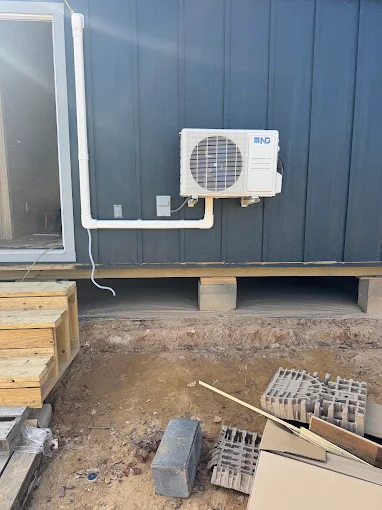

HOA approval is separate from the city permit and enforced by a different body. Most associations are concerned with whether the outdoor condenser is visible from the street and whether it is screened — not with the indoor unit, which they have no jurisdiction over.

Submit before scheduling. The approval is usually routine, but relocating a condenser or adding screening after installation is money spent for nothing.

Oncor rebates

Plano is in Oncor delivery territory, so the standard DFW program applies: up to $600 per qualifying heat pump, requiring 16 SEER2 or better equipment, an Oncor-approved contractor, and a DOE-listed smart thermostat.

The point worth repeating is that Oncor is your delivery utility no matter which retail provider bills you. Plano homeowners frequently assume they are ineligible because they have never seen Oncor on a statement. They are eligible.

Applications open in February and close December 1 or when funding is exhausted, which in recent years has happened early. A spring project has better odds than an August one.

The federal 25C credit, which offered up to $2,000 on a qualifying heat pump, expired December 31, 2025 and does not apply to 2026 installations.

Permits

Plano requires a mechanical permit for a new mini split and an electrical permit for a new dedicated circuit. Your licensed contractor files through Plano Building Inspections. The process here is generally efficient — Plano is not a difficult permitting jurisdiction.

Next steps

For the bonus room problem specifically, see attic and bonus room mini splits. For the garage, see garage mini splits. Full cost tables are on the pricing page.
