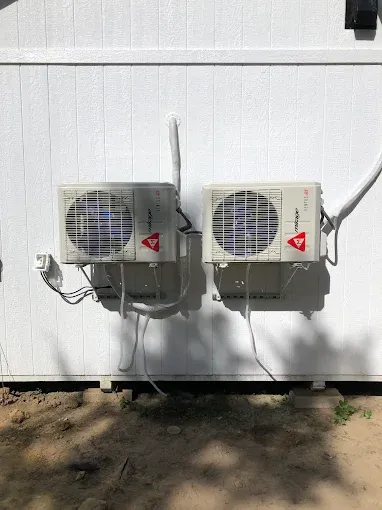

Mini Split Installation in Richardson, TX

Mid-century modern is the local specialty

Richardson has one of the more significant collections of mid-century modern residential architecture in North Texas. Richardson Heights, parts of Canyon Creek, and the neighbourhoods built through the 1950s and 60s are full of flat and low-slope roofs, post-and-beam construction, exposed ceiling structure, clerestory windows, and long horizontal sight lines.

These houses are wonderful and they are genuinely difficult to air condition well.

There is no attic. A flat or low-slope roof leaves no space to run a duct network. Whatever central system exists was retrofitted into closets, chases, or a soffit somebody built later.

There is no wall cavity to spare. Post-and-beam construction with large glazed openings leaves few interior partitions thick enough to hide a duct.

The ceiling is the architecture. Exposed beams and continuous ceiling planes are the point. Dropping a ceiling or building a soffit to carry ductwork destroys precisely what makes the house valuable.

Ductless is usually the only approach that adds real capacity without compromising the design. The intervention is a three-inch penetration per zone.

Two practical notes for these houses. Where a wall-mounted head would interrupt a clean sight line or sit awkwardly under a clerestory, a floor-mounted unit sits low, reads more like a radiator, and stays below the horizontal lines the architecture depends on. And line-set routing takes more planning than in a conventional house — with no attic and exposed structure, the path from condenser to head needs to be worked out before install day, not during it. A contractor who has done these homes before will walk the route with you at quote time.

Also worth noting: these homes have a lot of single-pane glass on west and south elevations. Solar gain often matters more than square footage. Window film or exterior shading cuts peak load 20 to 30 percent and frequently lets you install a smaller unit.

The Telecom Corridor

The other half of Richardson’s ductless demand is commercial. The Telecom Corridor along US-75 concentrates technology firms, and with them server rooms, IT closets, and lab spaces whose cooling needs do not match the base building schedule.

The recurring scenario: building HVAC shuts down evenings and weekends, equipment does not.

Specify a low-ambient kit. The single most common omission on these jobs. A standard mini split will not produce cooling at 40°F outdoor ambient, and that is exactly when your racks are still throwing off August-level heat. A low-ambient kit extends operation to roughly 0°F. Without one, the system fails on the first cold night.

Size on wattage, not area. Total the equipment watts, multiply by 3.41 for BTU/hr, add 20 percent. A 3,000 W rack means roughly 10,200 BTU/hr, so 12,000 BTU is the practical floor.

Redundancy for anything critical. Two smaller units beat one large one — a failure means degraded cooling rather than none.

Full detail on commercial mini split installation. Commercial permits in Richardson follow a separate track and often require sealed drawings.

The rest of the housing stock

Beyond the mid-century core, Richardson has substantial 1960s–1980s conventional housing in Arapaho, Duck Creek, Prairie Creek, and Breckinridge, plus newer development around CityLine.

The older conventional homes have the familiar aging-ductwork question. Duct systems of that age in 140°F Texas attics commonly leak 20 to 30 percent. Ask for a duct leakage test rather than guessing — if they test tight, a high-efficiency central replacement is likely better value; if they leak badly, you are choosing between rebuilding the network and eliminating it. See mini split vs central AC.

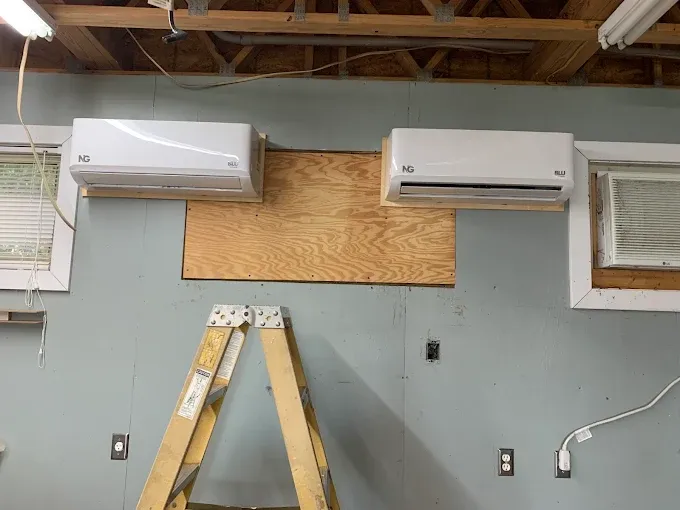

Common additive jobs across the city: garages wanted as workshops or gyms, home offices needing to hold temperature on a workday schedule, and converted spaces the original system was never sized for.

Oncor rebates — and a local warning

Richardson is in Oncor’s delivery territory. The standard DFW program applies: up to $600 per qualifying heat pump, requiring 16 SEER2 or better equipment, an Oncor-approved contractor, and a DOE-listed smart thermostat. Applications run February through November, closing December 1 or when funding runs out.

The local warning: do not assume a neighbour’s experience transfers. Richardson borders Garland, which runs its own municipal utility and is not in the Oncor program at all. Two homeowners a mile apart can have completely different rebate answers. Check a recent bill.

The federal 25C tax credit expired December 31, 2025 and is unavailable for 2026 installations.

Permits and associations

The City of Richardson requires a mechanical permit for a new mini split and an electrical permit for a new dedicated circuit, filed by your licensed contractor. Richardson spans Dallas and Collin counties, and addresses outside city limits follow county requirements.

Several Richardson neighbourhoods have active HOAs or neighbourhood associations with architectural guidelines covering exterior equipment. That is separate from the city permit. Worth checking before the condenser goes in, particularly in the mid-century neighbourhoods where residents tend to care a great deal about street-facing appearance.

Next steps

See older homes for mid-century retrofits, commercial mini splits for Telecom Corridor server rooms, or the pricing page for full cost tables.
